The difference between water cooled chiller and air cooled chiller May 17, 2022
Industrial chillers are divided into water cooled industrial chillers and air cooled industrial chillers. The difference between them is mainly the difference in condensers. The condenser of the water cooled chiller mainly removes heat by circulating cooling water, so the water cooled condenser of the water cooled chiller is also commonly called a water cannon. Different from the water cooled type, the air cooled industrial chiller uses a fan for heat dissipation. A finned condenser is usually used. The fins actually refer to aluminum sheets. The parts that need heat exchange are externally installed with aluminum sheets to achieve efficient heat dissipation, and then the hot air is drawn out through a powerful fan.

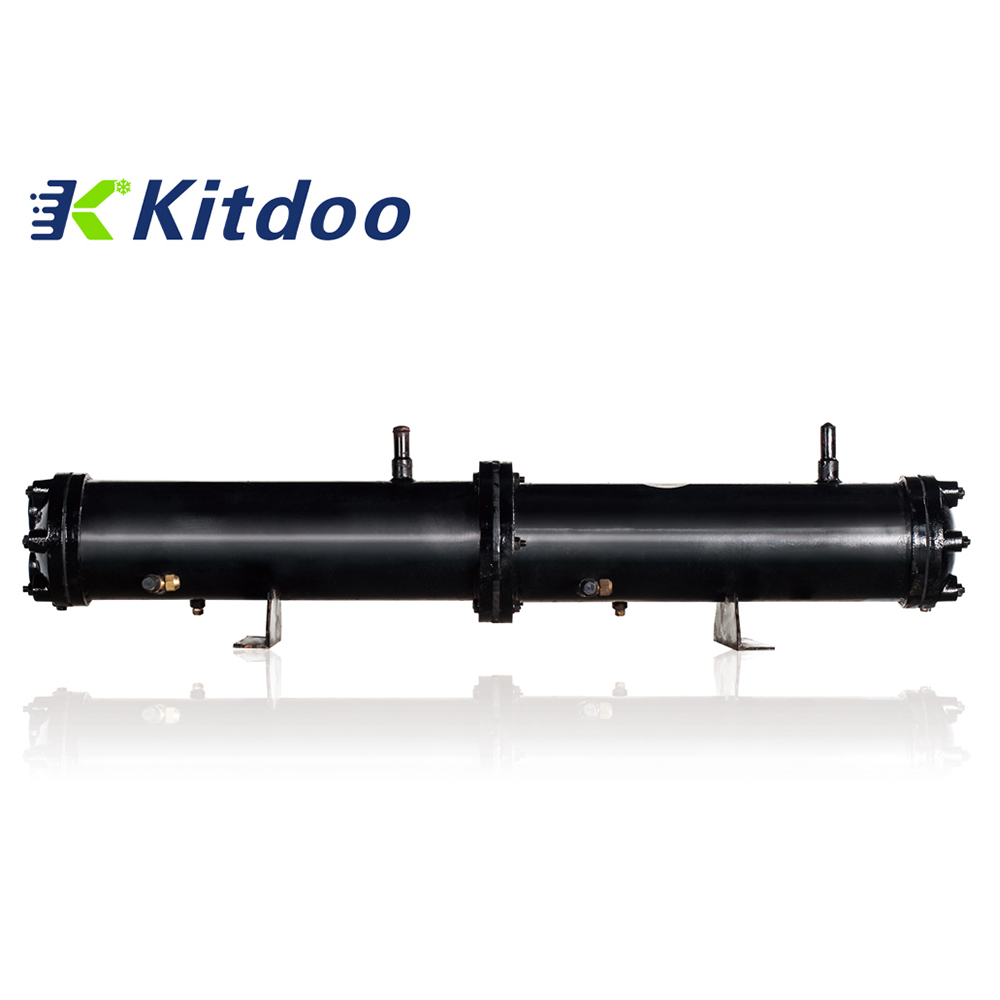

water cooled condenser

Therefore, when the temperature of the workshop is high, the air-cooled chiller will not only be affected by itself (the high temperature of the condenser will directly cause the high pressure alarm of the industrial chiller, and the cooling capacity will decrease), it will also have a direct impact on the temperature of the workshop. The advantages of water-cooled chillers are obvious. The water-cooled industrial chiller requires the cooling water tower to circulate cooling water to cool down. Therefore, to use the water-cooled chiller, it is necessary to install the cooling water tower, the cooling water circulating pump, and the pipeline, which is cumbersome. Compared with air-cooled industrial chillers, the ease of movement pales in comparison. But in most cases factories are already equipped with cooling water circulation system.

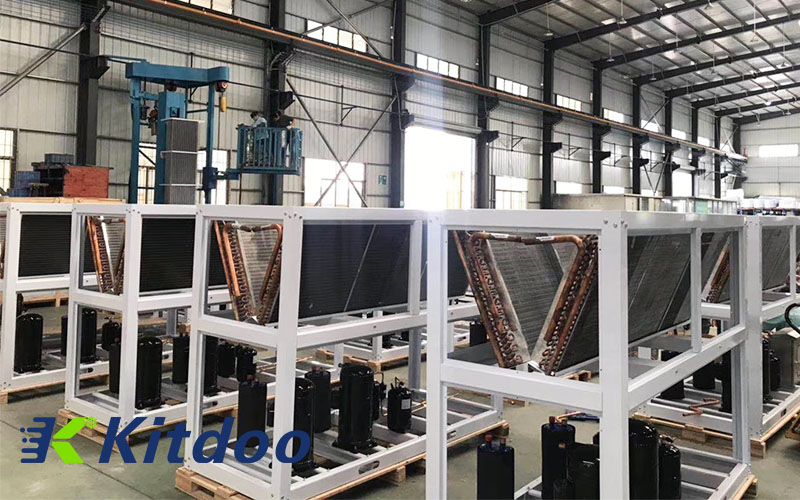

air cooled condenser
