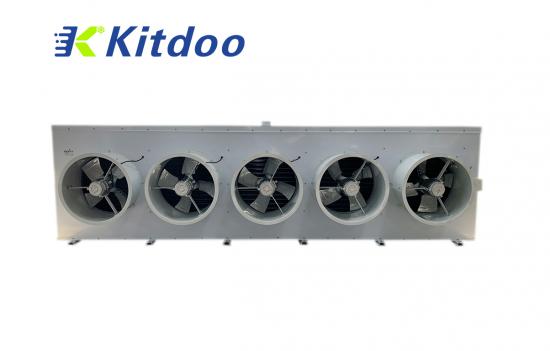

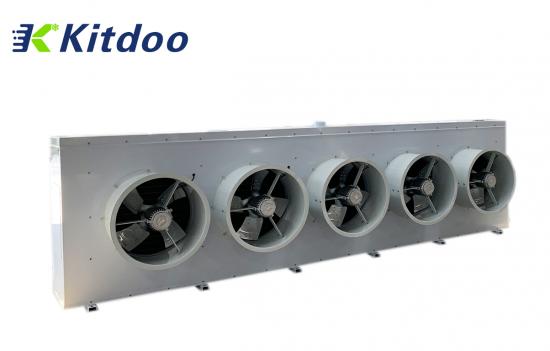

Industrial evaporative air cooler/industrial air condition for cold room

KITDOO's water defrosting air cooler removes the fins through circulating water at room temperature to melt the frost on the fins. This method saves electricity compared to the conventional electric defrosting method. And it will not cause fluctuations in the storage temperature.

Brand:
Kitdoo
Payment:
T/T,WesternUnion,L/C
Product Origin:
China
Color:
White
Order(MOQ):
10
Shipping Port:
Guangzhou/Foshan/Shenzhen
Lead Time:
15 days
Fin space:
4.5mm
Fan diameter:
300mm/400mm/500mm/600mm/630mm
Packing:
wooden case
Color:
white
Voltage:
220v/380v
Cold room temperature:
12 to -2℃
Refrigerant:
R22/R404A/R410A/R134
Port:
Guangzhou/Foshan/Shenzhen

Inquiry now

product introduction

Industrial evaporative air cooler/industrial air condition for cold room

KITDOO's refrigeration evaporator removes the fins through circulating water at room temperature to melt the frost on the fins. Compared with the conventional electric defrosting method, this method saves electricity, is more energy-efficient and has a better defrosting effect. During the defrosting process, there will be no sudden increase in the storage temperature, which will lead to the deterioration of the frozen goods. Water defrosting refrigerator evaporators are very suitable for cold storage such as frozen medicine and vaccines.

1.KITDOO brand SDL series water defrosting evaporator is suitable for the storage temperature around 0 degree, such as the for eggs, vegetable frsh-keeping.

2.Defrost structure design for water disc type, large water flow, uniform distribution of water, defrost effect is good, small rise in storage temperature.

3.Using water defrosting air cooler evaporator products can greatly reduce electricity consumption, save energy and reduce costs.

Model	Capacity (W)	Cooling surface (m²)	Fin Space (mm)	Fan				HeaterVoltage (v)
Model	Capacity (W)	Cooling surface (m²)	Fin Space (mm)	Qty	Size (mm)	Air flow (m³/h)	Voltage (v)	HeaterVoltage (v)
SDL-2.0/10	2000	10	4.5	1	300	1700	380	220
SDL-3.0/15	3000	15	4.5	2	300	3400	380	220
SDL-5.0/25	5000	25	4.5	3	400	5100	380	220
SDL-8.0/40	8000	40	4.5	2	400	8000	380	220
SDL-11.2/55	11200	55	4.5	2	500	8000	380	220
SDL-16.2/80	16200	80	4.5	2	500	12000	380	220
SDL-21.0/105	21000	105	4.5	2	500	12000	380	220
SDL-25.0/135	25000	135	4.5	3	500	18000	380	220
SDL-32.6/160	32600	160	4.5	3	500	18000	380	220
SDL-37.6/185	37600	185	4.5	3	500	18000	380	220
SDL-42.7/220	42700	220	4.5	4	500	24000	380	220
SDL-50.0/250	50000	250	4.5	4	500	24000	380	220
SDL-55.0/280	55000	280	4.5	4	500	24000	380	220
SDL-60.0/300	60000	300	4.5	4	500	24000	380	220
SDL-66.0/330	66000	330	4.5	4	500	24000	380	220
SDL-70.0/375	70000	375	4.5	4	600	44000	380	220
SDL-82.0/410	82000	410	4.5	4	600	44000	380	220
SDL-94.0/470	94000	470	4.5	5	630	45000	380	220
SDL-116.0/580	11600	580	4.5	5	630	45000	380	220
