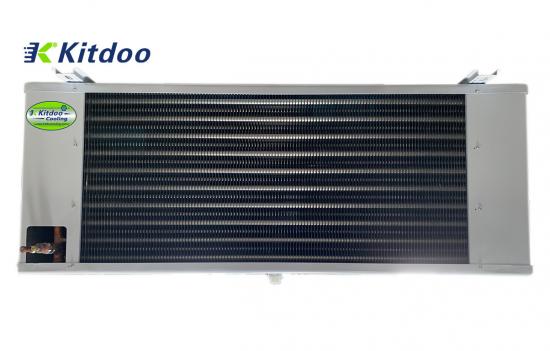

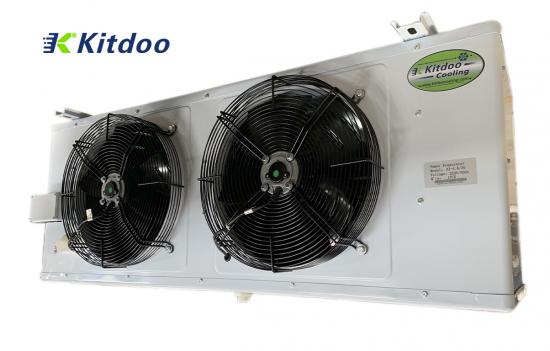

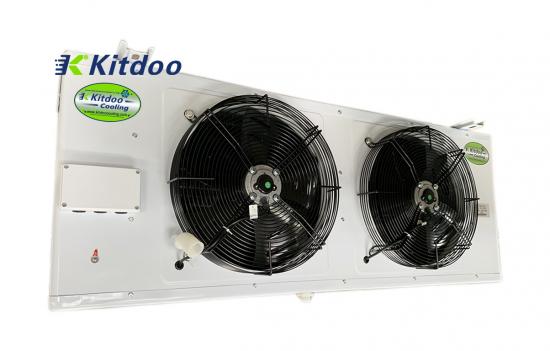

cool room evaporator and cold room cooling unit
DD series cold room cooling is for Medium temperature from -2 to -18 degree, fin space is 6mm.Mainly used in cold storage for vegetables, fruits and frozen meat.
Application Occasions：
Model D Series cold room cooling/unit cooler/cold room cooling unit is a type of cooling equipment applied to vrious of refrigeratories like unit cooler, storing and freshing food. Model D series have the three types: DL, DD, DJ, which can meet different requirement on temperature. Model DL applies to 0 degree freshness storehouse. Model DD applies to -18 degree cold storage. Model DJ applies to -25 degree quick-frozen storage.
Product Features:
The shell of cool room evaporator is generally made of plastic-sprayed iron plate, food-grade stainless steel plate or embossed aluminum plate. The cold room cooling unit has many advantages such as large heat exchange, convenient and simple, high corrosion resistance, and beautiful appearance. The heat exchange coil of the air cooler generally uses internal threads. The heat exchange copper tube is in close contact with the aluminum fin through a hydraulic tube expander, thereby reducing the contact distance and improving the heat transfer coefficient.
After the cold room evaporator is produced, it goes through a strict decontamination process to ensure the cleanliness of the quality system. The cold storage cooler uses a high-efficiency outer rotor motor. The motor of this structure has the advantages of large air volume, high wind speed, and long service life. The cold storage cooler should be able to Install explosion-proof motors according to different needs.
KITDOO refrigeration equipment company provides customers with professional one-stop cold chain services.
1.Commercial Medium temperature cold room air cooler.
2.There are enough space between fans and coils.
3.Exquisite and compact shape design to maximize cold room space utilization
Product Features:
|
Model |
Capacity
(W) |
Cooling surface
(m2) |
Fin Space
(mm) |
Fan |
HeaterVoltage
(v) |
|||
|
Qty |
Size
(mm) |
Air flow
(m3/h) |
Voltage
(v) |
|||||
|
DD-1.3/7 |
1300 |
7 |
6 |
1 |
300 |
1700 |
380 |
220 |
|
DD-2.2/12 |
2200 |
12 |
6 |
2 |
300 |
3400 |
380 |
220 |
|
DD-2.8/15 |
2800 |
15 |
6 |
2 |
300 |
3400 |
380 |
220 |
|
DD-3.7/22 |
3700 |
22 |
6 |
3 |
300 |
5100 |
380 |
220 |
|
DD-5.6/30 |
5600 |
30 |
6 |
2 |
400 |
8000 |
380 |
220 |
|
DD-7.5/40 |
7500 |
40 |
6 |
2 |
400 |
8000 |
380 |
220 |
|
DD-11.2/60 |
11200 |
60 |
6 |
2 |
500 |
12000 |
380 |
220 |
|
DD-14.9/80 |
14900 |
80 |
6 |
2 |
500 |
12000 |
380 |
220 |
|
DD-18.7/100 |
18700 |
100 |
6 |
3 |
500 |
18000 |
380 |
220 |
|
DD-22.4/120 |
22400 |
120 |
6 |
3 |
500 |
18000 |
380 |
220 |
|
DD-26.4/140 |
26400 |
140 |
6 |
3 |
500 |
18000 |
380 |
220 |
|
DD-30.0/160 |
30000 |
160 |
6 |
4 |
500 |
24000 |
380 |
220 |
|
DD-35.0/180 |
35000 |
180 |
6 |
4 |
500 |
24000 |
380 |
220 |
|
DD-37.0/200 |
37000 |
200 |
6 |
4 |
500 |
24000 |
380 |
220 |
|
DD-40.0/220 |
40000 |
220 |
6 |
4 |
500 |
24000 |
380 |
220 |
|
DD-46.0/250 |
46000 |
250 |
6 |
4 |
500 |
24000 |
380 |
220 |
|
DD-50.0/275 |
50000 |
275 |
6 |
4 |
600 |
44000 |
380 |
220 |
|
DD-57.0/310 |
57000 |
310 |
6 |
5 |
600 |
44000 |
380 |
220 |
|
DD-67.0/360 |
67000 |
360 |
6 |
5 |
630 |
45000 |
380 |
220 |
|
DD-81.0/440 |
81000 |
440 |
6 |
5 |
630 |
45000 |
380 |
220 |
Product Detail：
Company Profile：
FOSHAN KITDOO REFRIGERATION EQUIPMENT CO.,LTD. is a comprehensive industrial company specializing in the production of refrigeration equipment integrating research and development, manufacturing, and business services.
