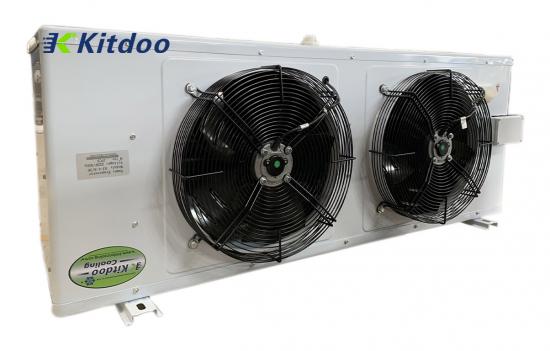

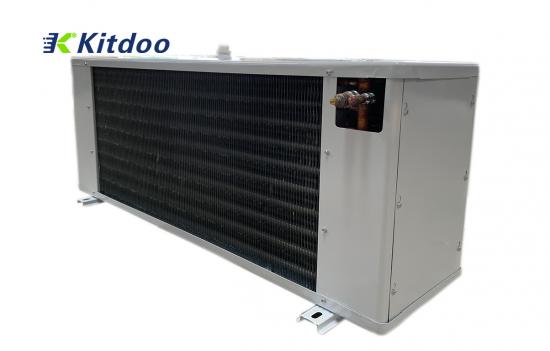

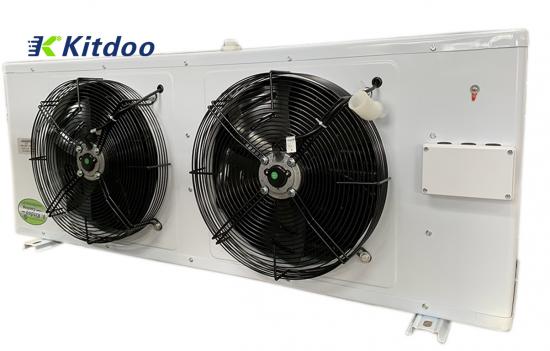

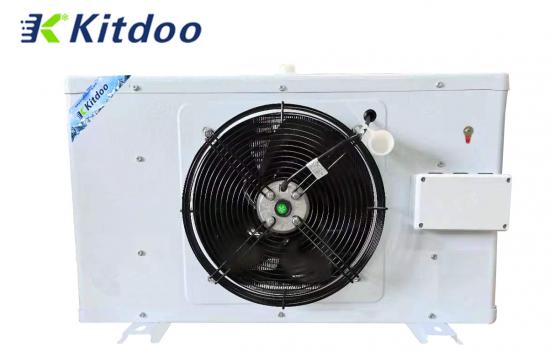

cool room evaporator and cooler refrigeration unit
DD series cold storage indoor units are for Medium temperature from -2 to -18 degree, fin space is 6mm.
Model D Series cold storage indoor unit/unit cooler/walk in cooler unit is a type of cooling equipment applied to vrious of refrigeratories like unit cooler, storing and freshing food. Model D series have the three types: DL, DD, DJ, which can meet different requirement on temperature. Model DL applies to 0 degree freshness storehouse. Model DD applies to -18 degree cold storage. Model DJ applies to -25 degree quick-frozen storage.
The shell of cool room evaporator is generally made of plastic-sprayed iron plate, food-grade stainless steel plate or embossed aluminum plate. The cold room cooling unit has many advantages such as large heat exchange, convenient and simple, high corrosion resistance, and beautiful appearance. The heat exchange coil of the air cooler generally uses internal threads. The heat exchange copper tube is in close contact with the aluminum fin through a hydraulic tube expander, thereby reducing the contact distance and improving the heat transfer coefficient.
After the cooler refrigeration unit is produced, it goes through a strict decontamination process to ensure the cleanliness of the quality system. The cooler refrigeration unit uses a high-efficiency outer rotor motor. The motor of this structure has the advantages of large air volume, high wind speed, and long service life. The cooler refrigeration unit should be able to Install explosion-proof motors according to different needs.
KITDOO refrigeration equipment company provides customers with professional one-stop cold chain services.
1.Commercial Medium temperature cool room evaporator.
2.There are enough space between fans and coils.
3.Exquisite and compact shape design to maximize cold room space utilization
|
Model |
Capacity
(W) |
Cooling surface
(m2) |
Fin Space
(mm) |
Fan |
HeaterVoltage
(v) |
|||
|
Qty |
Size
(mm) |
Air flow
(m3/h) |
Voltage
(v) |
|||||
|
DD-1.3/7 |
1300 |
7 |
6 |
1 |
300 |
1700 |
380 |
220 |
|
DD-2.2/12 |
2200 |
12 |
6 |
2 |
300 |
3400 |
380 |
220 |
|
DD-2.8/15 |
2800 |
15 |
6 |
2 |
300 |
3400 |
380 |
220 |
|
DD-3.7/22 |
3700 |
22 |
6 |
3 |
300 |
5100 |
380 |
220 |
|
DD-5.6/30 |
5600 |
30 |
6 |
2 |
400 |
8000 |
380 |
220 |
|
DD-7.5/40 |
7500 |
40 |
6 |
2 |
400 |
8000 |
380 |
220 |
|
DD-11.2/60 |
11200 |
60 |
6 |
2 |
500 |
12000 |
380 |
220 |
|
DD-14.9/80 |
14900 |
80 |
6 |
2 |
500 |
12000 |
380 |
220 |
|
DD-18.7/100 |
18700 |
100 |
6 |
3 |
500 |
18000 |
380 |
220 |
|
DD-22.4/120 |
22400 |
120 |
6 |
3 |
500 |
18000 |
380 |
220 |
|
DD-26.4/140 |
26400 |
140 |
6 |
3 |
500 |
18000 |
380 |
220 |
|
DD-30.0/160 |
30000 |
160 |
6 |
4 |
500 |
24000 |
380 |
220 |
|
DD-35.0/180 |
35000 |
180 |
6 |
4 |
500 |
24000 |
380 |
220 |
|
DD-37.0/200 |
37000 |
200 |
6 |
4 |
500 |
24000 |
380 |
220 |
|
DD-40.0/220 |
40000 |
220 |
6 |
4 |
500 |
24000 |
380 |
220 |
|
DD-46.0/250 |
46000 |
250 |
6 |
4 |
500 |
24000 |
380 |
220 |
|
DD-50.0/275 |
50000 |
275 |
6 |
4 |
600 |
44000 |
380 |
220 |
|
DD-57.0/310 |
57000 |
310 |
6 |
5 |
600 |
44000 |
380 |
220 |
|
DD-67.0/360 |
67000 |
360 |
6 |
5 |
630 |
45000 |
380 |
220 |
|
DD-81.0/440 |
81000 |
440 |
6 |
5 |
630 |
45000 |
380 |
220 |
