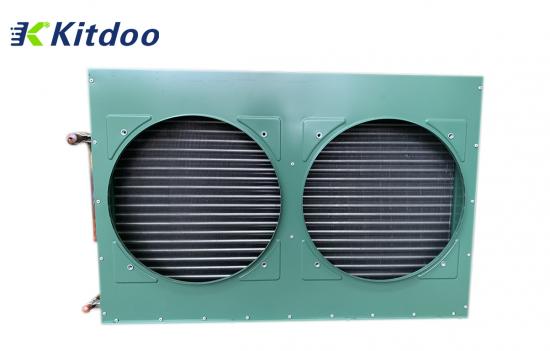

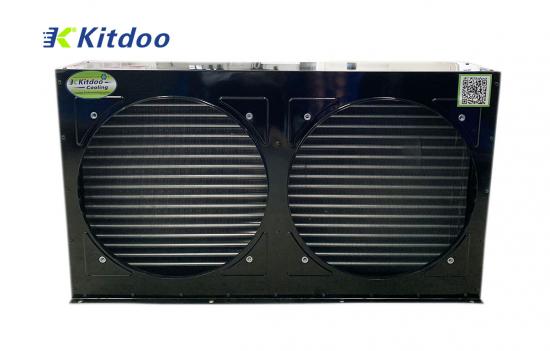

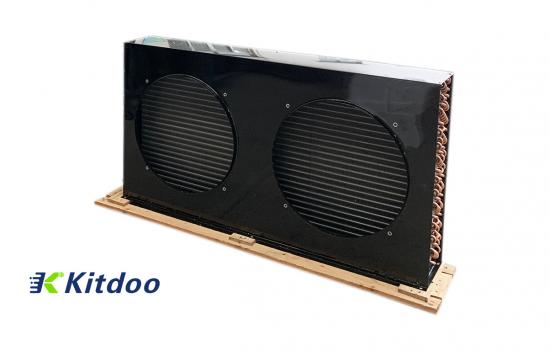

Dual Fans Cooling Condenser cool room condensers
The Air Cooling Condensers uses high-efficiency heat exchange copper tubes. Aluminum fins use a unique shape and have a higher heat transfer coefficient.Cooling Condensers are mainly used in ice machines, seafood machines, fish pond machines, freezers, beverage freezers
Application Occasions：
Air Cooling Condensers are mostly used in condensing units for cold storage and heat exchangers for supermarket refrigerators. Air Cooling Condensers are widely used in refrigeration industry, agriculture, food, restaurant, chemical industry, etc.
Product Features:
Condenser Cooling is mainly equipped with open-typecondenser unit refrigerationswith scroll compressor, hemertic & semi-hemertic compressor. This Condenser Cooling and compressors can be installed together or separately from compressors. Design of High barrel with Side-mounted structure, with high heat transfer capacity.
1.Kitdoo cold room condensers are reasonable structure good compatibility and can be matched with various compressors.
2.The shell of Air Cooled Condensers made of quality steel with surface plastic-sprayed which is corrosion-resistant and beautiful
3.Three colors available,such as Bitzer Condenser.
4.According to customer’s requirement different condenser fans are available.
5. Cabinet is steel plate with plastic spray, corrosion-proof and pleasant looking.
6. Mechanically expanded pipes with AL fins good heat transfer performance.
7. Air Cooling Condensers have done 2.8 Mpa gas pressure and pollution clear before leave factory.
8. Air Cooling Condenser is widely use in big capacity condensing unit, large windward acreage and high heat exchange efficiency, with external motor.
Refrigerants:
Condenser Cooling can meet the requirements of R404A, R507A, R448A, R449A, R134a, R22 and other refrigerants.
Product Parameter：
Model
Capacity
（w）
Cooling surface
(m2)
Dimension
(mm)
Fan quantity
fan size
(mm)
FNF-7.2/26
7800
26
820*165*430
2
350
FNF-8.8/30
8800
30
950*180*610
2
400
FNF-9.0/42
10800
42
980*200*590
2
400
FNF-10.2/50
14000
50
950*200*530
2
400
FNF-15.2/53
15200
53
980*200*590
2
400
FNF-19/63
19000
63
960*200*630
2
400
FNF-21.5/75
22000
75
960*220*630
2
400
