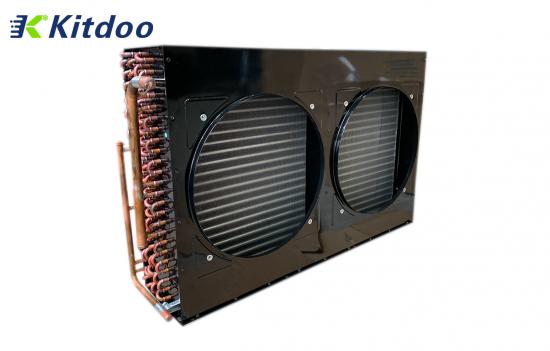

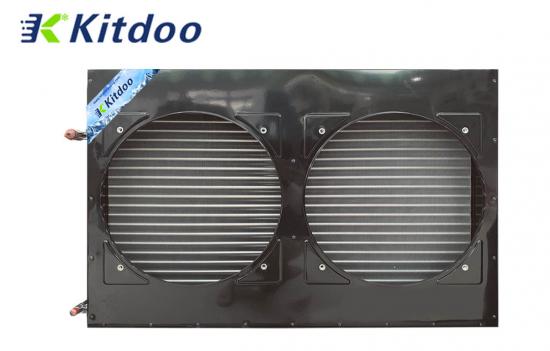

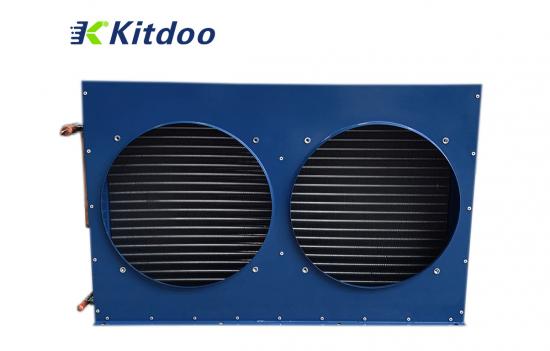

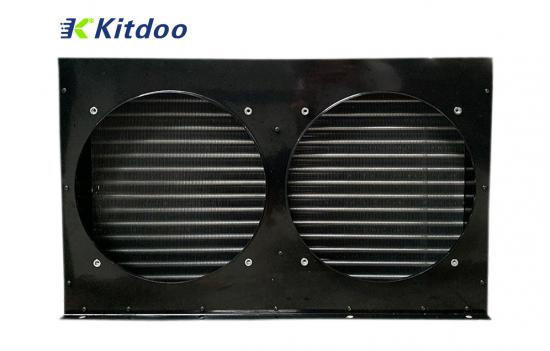

Heat exchanger air cooled condensers for outdoor condensing unit
Air cooled condensers can be customized, are widely used in refrigeration unit, cold storage unit, and industrial refrigeration unit.
Application Occasions：
Refrigeration equipment condensers are mostly used in condensing units for cold storage and heat exchangers for supermarket refrigerators. Refrigeration equipment condensers are widely used in refrigeration industry, agriculture, food, restaurant, chemical industry, etc.
Product Features:
1.Kitdoo Cooling Air Cooled Condenser use quality copper tube and aluminum fins, it achieves a high heat transfer.
2.After treatment of oil removal, rust removal, passivation, spray coating and drying, the casing enjoys excellent corrosion-proof performance.
3.Full range of product specifications satisfies heat dispersion requirement from compressor with various powers.
4.Famous brands fan at stable quality adopted endows excellent heat dispersion and low noise.
5. Cabinet is steel plate with plastic spray, corrosion-proof and pleasant looking.
6. Mechanically expanded pipes with AL fins good heat transfer performance.
7. Cold room condensers have done 2.8 Mpa gas pressure and pollution clear before leave factory.
8. Cold room condensing unit condenser is widely use in big capacity condensing unit, large windward acreage and high heat exchange efficiency, with external motor.
Refrigerants:
Air Cooled condenser can meet the requirements of R404A, R507A, R448A, R449A, R134a, R22 and other refrigerants.
Product Parameter：
Model
Capacity
（w）
Cooling surface
(m2)
Dimension
(mm)
Fan quantity
fan size
(mm)
FNF-7.2/26
7800
26
820*165*430
2
350
FNF-8.8/30
8800
30
950*180*610
2
400
FNF-9.0/42
10800
42
980*200*590
2
400
FNF-10.2/50
14000
50
950*200*530
2
400
FNF-15.2/53
15200
53
980*200*590
2
400
FNF-19/63
19000
63
960*200*630
2
400
FNF-21.5/75
22000
75
960*220*630
2
400
Product Detail：
Company Profile：
FOSHAN KITDOO REFRIGERATION EQUIPMENT CO.,LTD. is a comprehensive industrial company specializing in the production of refrigeration equipment integrating research and development, manufacturing, and business services.
