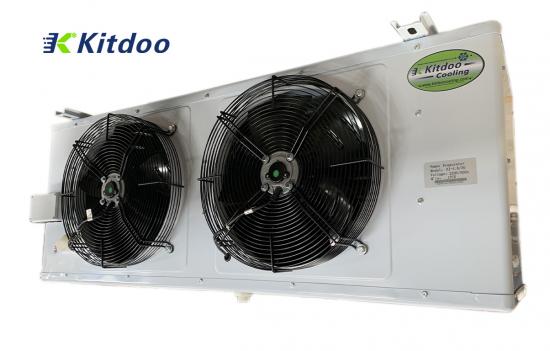

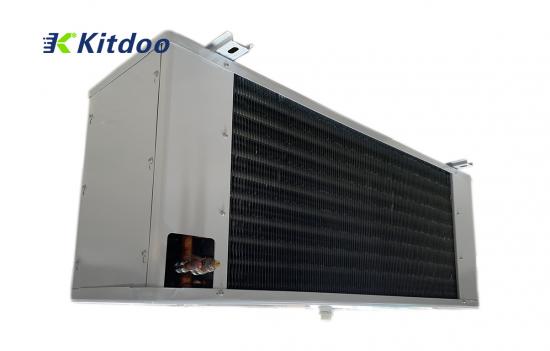

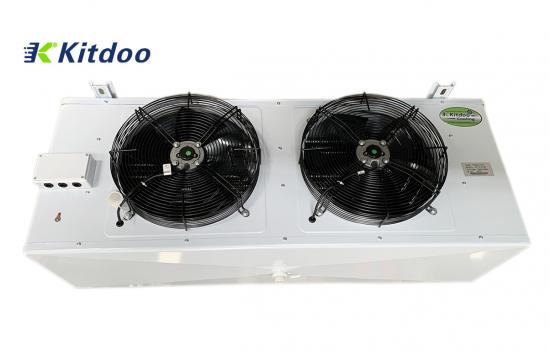

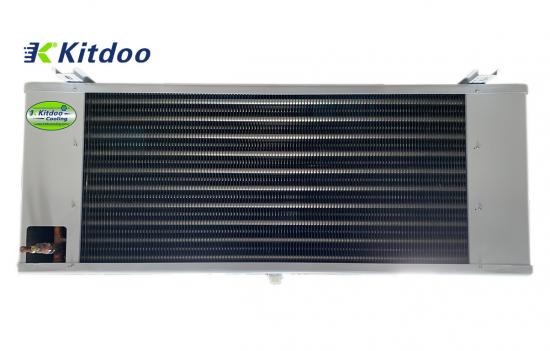

unit cooler evaporator cooler refrigeration unit for cold storage

Kitdoo DL type unit cooler evaporators are suit for storage room temperature from 12 degree to -2 degree, cooling indoor, for keeping fresh flowers, tea processing,seed storage, edible vegetable cultivation.

Brand:
Kitdoo
Payment:
T/T,WesternUnion,L/C
Product Origin:
China
Color:
White
Shipping Port:
Guangzhou/Foshan/Shenzhen
Lead Time:
15 days
Cold room temperature:
12 to -2℃
Refrigerant:
R22/R404A/R410A/R134

Inquiry now

product introduction

unit cooler evaporator cooler refrigeration unit for cold storage

Kitdoo DL type unit cooler evaporator for cold storages are suit for storage room temperature from 12 degree to -2 degree,cooler units, for keeping fresh flowers, tea processing,seed storage, edible vegetable cultivation.

The shell of unit cooler evaporator is generally made of plastic-sprayed iron plate, food-grade stainless steel plate or embossed aluminum plate. The cold room refrigeration evaporator has many advantages such as large heat exchange, convenient and simple, high corrosion resistance, and beautiful appearance. The heat exchange coil of the air cooler generally uses internal threads. The heat exchange copper tube is in close contact with the aluminum fin through a hydraulic tube expander, thereby reducing the contact distance and improving the heat transfer coefficient.

After the cooler refrigeration unit is produced, it goes through a strict decontamination process to ensure the cleanliness of the quality system. The cooler refrigeration unit uses a high-efficiency outer rotor motor. The motor of this structure has the advantages of large air volume, high wind speed, and long service life. The cold room cooling should be able to Install explosion-proof motors according to different needs.

1.Standard use of electricdefrosting,stainless heating pipes installed in the middle of coil and inner water plate. Independent electric heating tube junction box.Hot gas defrosting or coil hot gas defrosting & water plate electric defrosting can also be used.

2.Famous brand fan and electrical heating tube feature stable quality,low noise, low power consumption and high efficiency.

3.It serves as the best choice for refrigeration project.

Model	Capacity (W)	Cooling surface (m²)	Fin Space (mm)	Fan				HeaterVoltage (v)
Model	Capacity (W)	Cooling surface (m²)	Fin Space (mm)	Qty	Size (mm)	Air flow (m³/h)	Voltage (v)	HeaterVoltage (v)
DL-2.0/10	2000	10	4.5	1	300	1700	380	220
DL-3.0/15	3000	15	4.5	2	300	3400	380	220
DL-5.0/25	5000	25	4.5	3	400	5100	380	220
DL-8.0/40	8000	40	4.5	2	400	8000	380	220
DL-11.2/55	11200	55	4.5	2	500	8000	380	220
DL-16.2/80	16200	80	4.5	2	500	12000	380	220
DL-21.0/105	21000	105	4.5	2	500	12000	380	220
DL-25.0/135	25000	135	4.5	3	500	18000	380	220
DL-32.6/160	32600	160	4.5	3	500	18000	380	220
DL-37.6/185	37600	185	4.5	3	500	18000	380	220
DL-42.7/220	42700	220	4.5	4	500	24000	380	220
DL-50.0/250	50000	250	4.5	4	500	24000	380	220
DL-55.0/280	55000	280	4.5	4	500	24000	380	220
DL-60.0/300	60000	300	4.5	4	500	24000	380	220
DL-66.0/330	66000	330	4.5	4	500	24000	380	220
DL-70.0/375	70000	375	4.5	4	600	44000	380	220
DL-82.0/410	82000	410	4.5	4	600	44000	380	220
DL-94.0/470	94000	470	4.5	5	630	45000	380	220
DL-116.0/580	11600	580	4.5	5	630	45000	380	220
