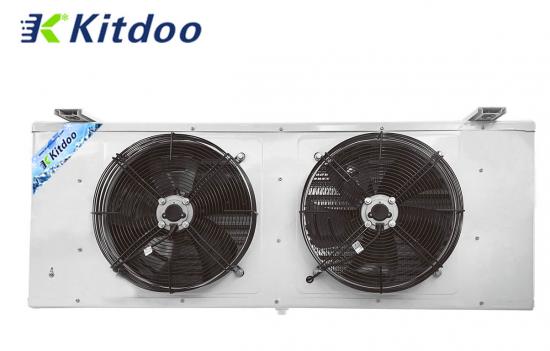

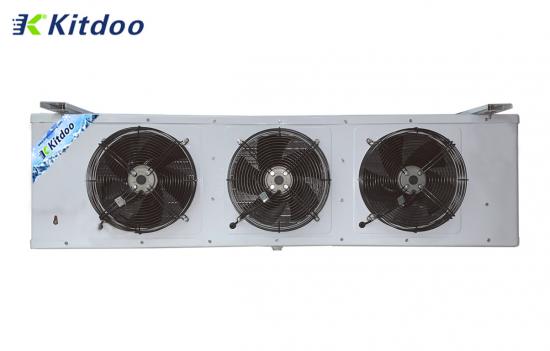

DL series air cooled evaporator

Wall mounted high temperature air cooled evaporator

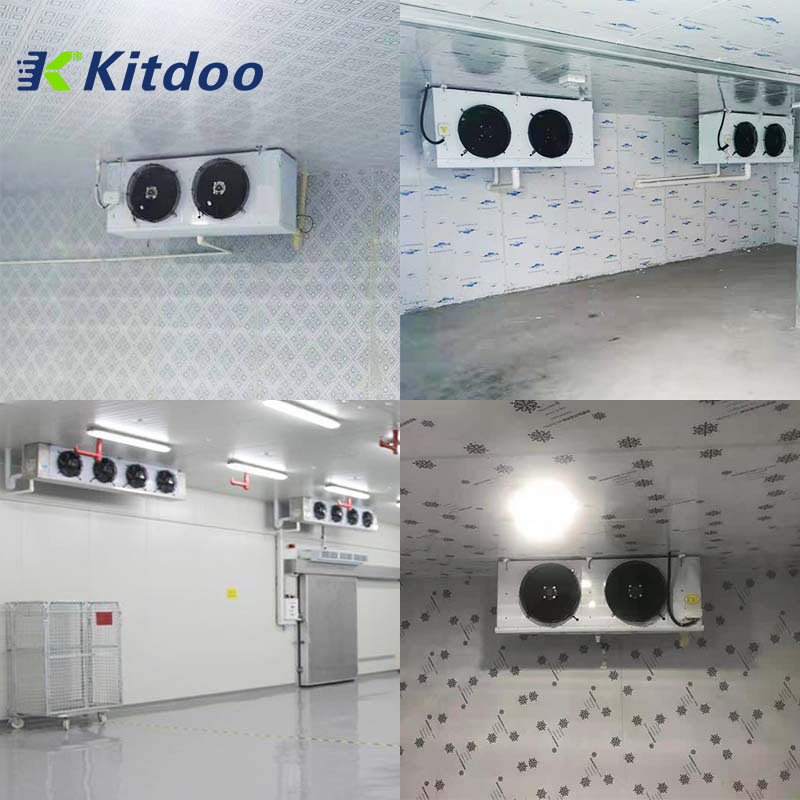

DL series wall mounted high temperature air cooled evaporator is suitable for the inventory of 0 degrees and above the cold storage, cold storage preservation such as eggs or vegetables.
  • Brand:

    Kitdoo
  • Payment:

    T/T,WesternUnion,L/C
  • Product Origin:

    China
  • Color:

    White
  • Order(MOQ):

    10
  • Shipping Port:

    Guangzhou/Foshan/Shenzhen
  • Lead Time:

    15 days
  • Fin space:

    4.5mm
  • Fan diameter:

    300mm/400mm/500mm/600mm/630mm
  • Packing:

    wooden case
  • Color:

    white
  • Voltage:

    220v/380v
  • Cold room temperature:

    12 to -2℃
  • Refrigerant:

    R22/R404A/R410A/R134
  • Port:

    Guangzhou/Foshan/Shenzhen

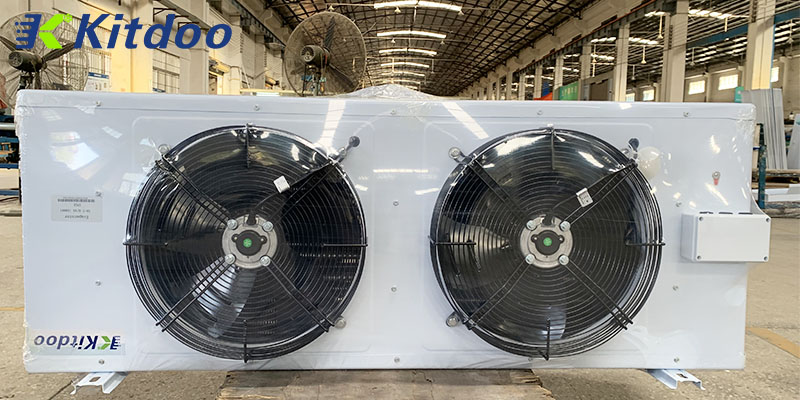

Wall mounted high temperature air cooled evaporator


            1.Electrical defrosting by heater.

            2.DL series high temperature type air cooled evaporator is suit for cold room temperature from 12 to -2 degree.

            3.Fin space:4.5 mm.

Model

Capacity

(W)

Cooling surface

(m2)

Fin Space

(mm)

Fan

HeaterVoltage

(v)

Qty

Size

(mm)

Air flow

(m3/h)

Voltage

(v)

DL-2.0/10

2000

10

4.5

1

300

1700

380

220

DL-3.0/15

3000

15

4.5

2

300

3400

380

220

DL-5.0/25

5000

25

4.5

3

400

5100

380

220

DL-8.0/40

8000

40

4.5

2

400

8000

380

220

DL-11.2/55

11200

55

4.5

2

500

8000

380

220

DL-16.2/80

16200

80

4.5

2

500

12000

380

220

DL-21.0/105

21000

105

4.5

2

500

12000

380

220

DL-25.0/135

25000

135

4.5

3

500

18000

380

220

DL-32.6/160

32600

160

4.5

3

500

18000

380

220

DL-37.6/185

37600

185

4.5

3

500

18000

380

220

DL-42.7/220

42700

220

4.5

4

500

24000

380

220

DL-50.0/250

50000

250

4.5

4

500

24000

380

220

DL-55.0/280

55000

280

4.5

4

500

24000

380

220

DL-60.0/300

60000

300

4.5

4

500

24000

380

220

DL-66.0/330

66000

330

4.5

4

500

24000

380

220

DL-70.0/375

70000

375

4.5

4

600

44000

380

220

DL-82.0/410

82000

410

4.5

4

600

44000

380

220

DL-94.0/470

94000

470

4.5

5

630

45000

380

220

DL-116.0/580

11600

580

4.5

5

630

45000

380

220
